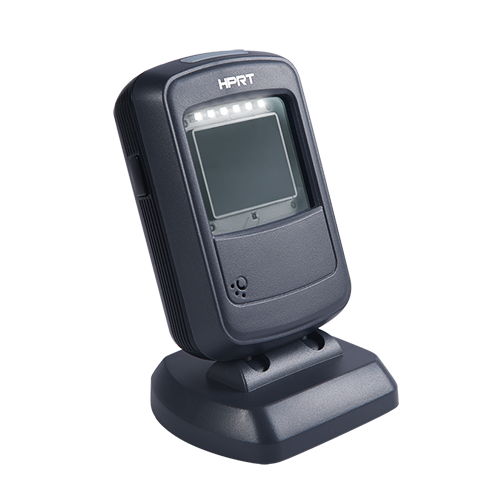

P200

2D Stationary Barcode Scanner

•  Solid-state hardware, higher stability and reliability

•  Multiple common interfaces, highly compatible

•  Independent R&D of core decoding technology

•  Induction recognition

•  Wide-angle adjustable scanning window

Add to wishlist
Share
Category
Tag
Brand:
    Scanning Parameter Image Sensor CMOS
    Pixel 640×480
    Illumination White LED
    Symbologies 2D:PDF417, QR Code, Data Matrix, HanXin, Maxicode ,Postal Codes, etc.
    1D:Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E,UPC-A,Interleaved 2 of 5,ITF-6, ITF-4, Matrix 2 of 5,Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, RSS-14、RSS-Limited、RSS-Expand, etc.
    Resolution ≥4mil
    Typical DOF 13mil EAN: 0mm-130mm

    5mil code 39: 0mm-60mm

    20mil QR: 0mm-70mm

    Mobile payment code(5.5 inch screen): 0mm-200mm
    Recognition Sensitivity Pitch±60º, Tilt360º, Skew±60º
    FOV Horizontal: 51 °, Vertical: 40 °
    Symbol Contrast ≥20%
    Physical Parameter Dimension(mm) 90 (D) *79 (W) *142(H)
    Weight 285g
    Notification Buzzer, LED Indicator
    Interfaces RS-232 Serial Port, USB, USB Virtual Serial Port
    Trigger Method Manual keystroke,
    induction recognition,
    continuous recognition
    Electrical Parameter Operating Voltage 5VDC±10%
    Operating Current Standby: 140mA,
    Working: 245mA
    Environment Parameter Operating Temperature -20 ℃~+50℃
    Storage Temperature -40℃~+70℃
    Relative Humidity 5%~95%（No Condensation）
    ESD ±15 kV（Air discharge ）
    ±8 kV（Direct discharge）
    Environment Luminosity 0~100, 000LUX
    Certification CE FCC RoHS
    Test Condition Environment temperature: 23ºC
    Environment illumination: 300LUX filament lamp
    DOF depends on the resolution, contrast of the printing codebar, and the environment illumination
