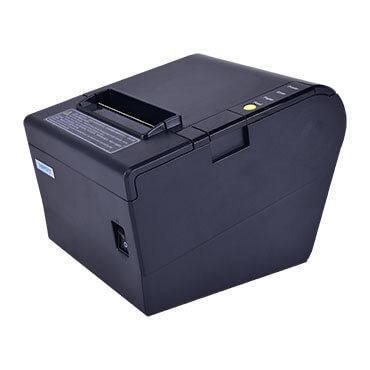

TP806

Rp1.645.000

80mm Thermal POS Printer

• Patent design of unique vertical double auto cutter

• High printing speed up to 300mm/s

• Default USB interface, with RS232, Parallel, Ethernet Bluetooth and WiFi boards optional

• Support 2D barcode printing, such as QR-code and PDF417

• Provide Windows, Linux, OPOS driver

• Support page mode printing

• With paper jam detection and double paper near end detection

• Movable paper guide plate design which supports 58mm, 80mm wide thermal paper

• Waterproof cover optional

Add to wishlist
Share
Category
Tag
Brand:
    Printing Print Method Direct Thermal
    Resolution 203 dpi (8 dots/mm)
    Print Speed Max. 300mm/s
    Printing Width Max. 72mm
    Interface Standard USB Type B, Cash Box
    Option Bluetooth, Wi-Fi, Ethernet, Serial Port, Paraller Port, Serial Port and Ethernet (2 in 1)
    Page Mode Support
    Memory RAM 2 MB
    Flash 4 MB
    Fonts Alphanumeric; Simplified Chinese, Traditional Chinese; 47 codepages
    Barcode 1D UPC-A, UPC-E, EAN-8, EAN-13, CODE 39, ITF, CODEBAR, CODE 128, CODE 93
    2D PDF417, QR Code
    Graphics Support bitmap printing with different density and user defined bitmap printing. (Max size of each bitmap is 40 KB, the total size of bitmap is 256 KB)
    Sensor Standard Paper out Detector, Paper near end Detector, Head up Detector
    Option Black Mark Detector
    LED Indicator Power Green
    Paper Red
    Error Red
    Power Supply Input AC 100V-240V, 50/60Hz
    Output DC 24V, 2A
    Paper Paper Type Thermal Receipt Paper
    Paper Width Max. 82.5 mm
    Paper Thickness 0.05 ~ 0.13 mm
    Roll Paper Diameter Max. Φ83mm (O.D)
    Paper Load Easy paper loading
    Paper cut Partial cut
    Physical Characteristics Operating 0°C ~ 40°C, 20% ~ 85% R.H
    Storage -20°C ~ 70°C, 5% ~ 95% R.H
    Dimensions 195(L)×145(W)×146(H) mm
    Weight 1.8 kg
    Options Accessories USB/Serial/Parallel Cable, Paper roll, Power Adapter, Power Cord, CD, Quick Start Guide
    Reliability TPH life 150 km
    Cutter 2 million cuts
    Software Emulation ESC/POS
    Driver HPRT Driver：Windows XP，Vista,7，8，10.Linux,Mac
    SDK WinCE, WindowsMobile, Android, iOS
